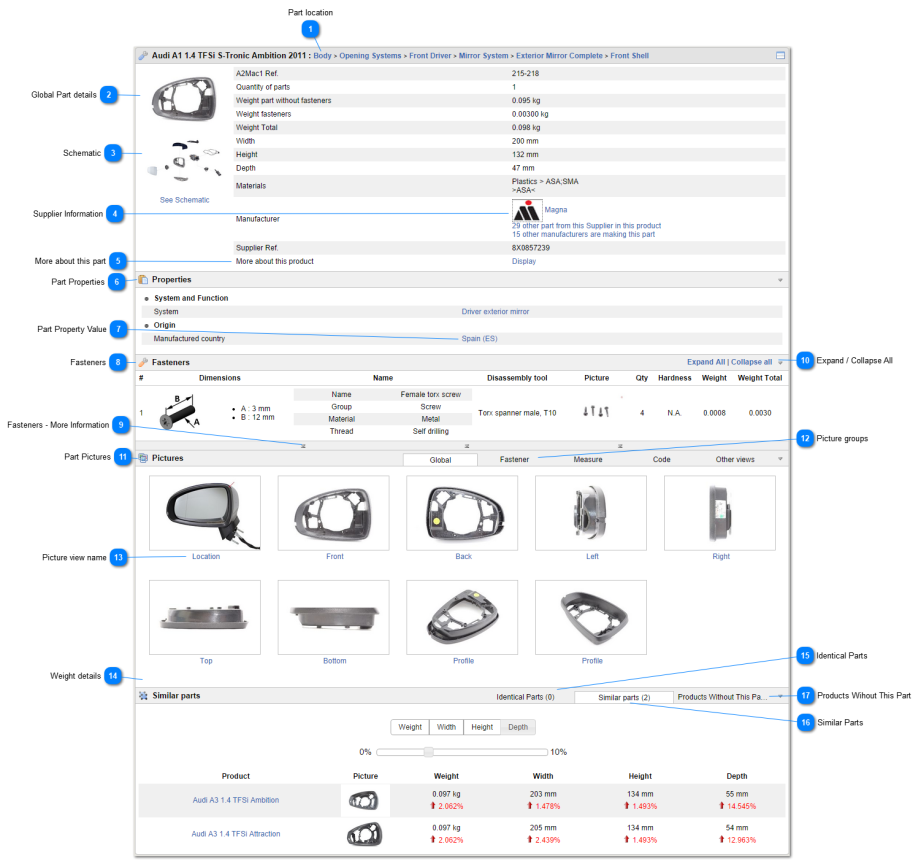

Part Sheet

Breadcrumbs to the current part. Each parent is clickable to be redirected to it.

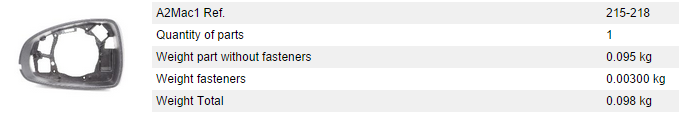

Basic part details are displayed, when available, on top of part sheet.

A schematic is displayed if the current part is linked to one. Clicking on it redirects to System Sheet.

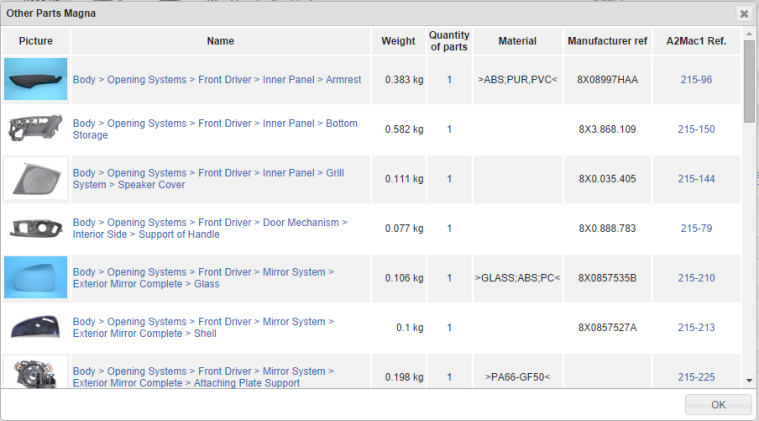

When the supplier is available, it is possible to check which parts in current product are made from this supplier, by clicking the "Other parts from this supplier in this product" :

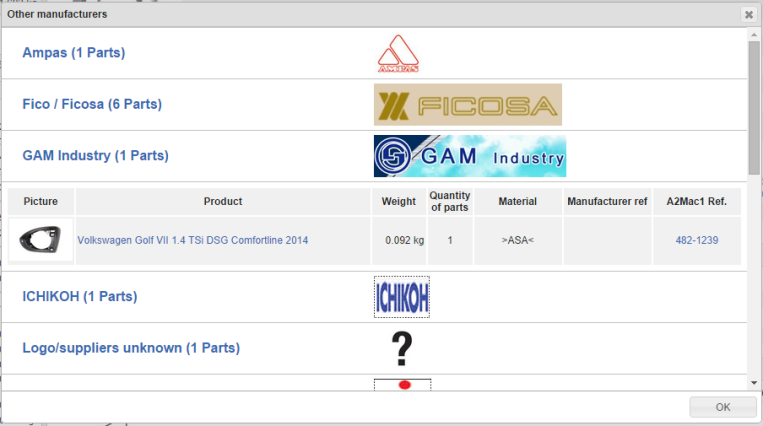

The "Other manufacturers making this part" link shows supplier's concurrency on other products :

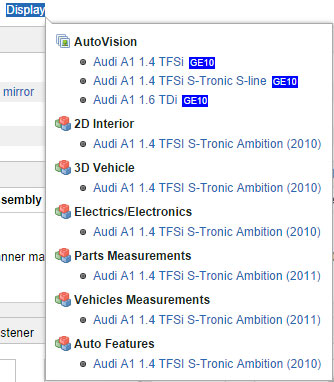

When current part is available in other studies or teardown programs, a "Display" link opens a popup with links to related studies :

Part properties are listed here, grouped by property groups.

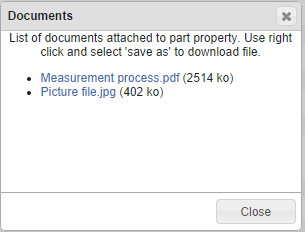

When documents are attached to a property, its name is in blue and a dialog is opening if clicked, listing available documents :

Properties can be text, numeric, yes/no, memo or document.

Clicking on a property value will popup a menu to interact with Search :

"Search this property" will add related product property as a search criteria.

"Search this value" will search for other data having with this value.

When the text value of the property is a link URL (starts with "http"), the context menu shows an addtional entry "Open link".



If some numeric part properties are set to "aggregated", they will also be shown on parents system sheets, and can be selected in the Customize Hierarchy Dialog.

Some properties can be edited by some users, depending on rights. See Edit Part Properties.

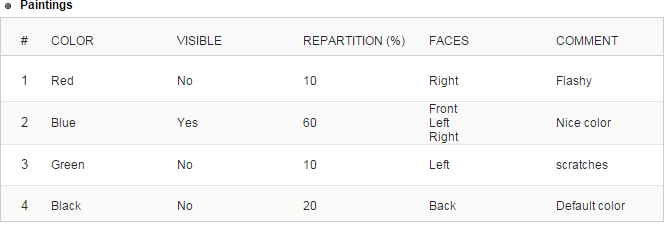

If part properties are defined as array, they are displayed in an array (properties in columns, values in lines) :

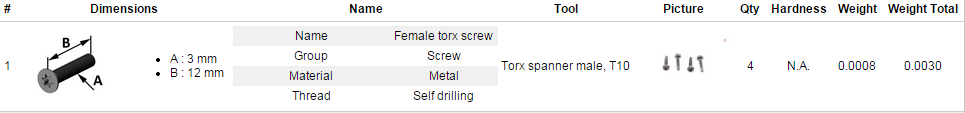

When available, part fasteners summary is displayed here, as rows.

Part fasteners can have more information, such as pictures and properties. This information is not shown by default, this banner will expand current fastener details.

Shortcuts to expand and collapse all part fasteners details.

All part pictures are listed here, ordered by group (tabs).

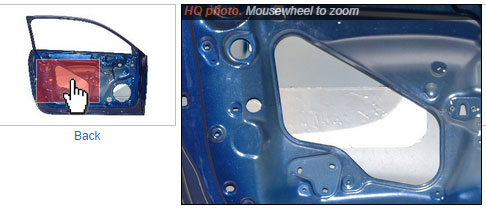

Hovering a picture will popup a zoom, that can be zoomed in and out using mousewheel.

The red rectangle on the thumbnail can be moved to zoom at any picture locations, using drag & drop.

Clicking on a picture will open the Zoom dialog.

Pictures are ordered by groups.

Click a tab to display related pictures.

Pictures are ordered by view inside a group.

Clicking a picture view name displays a popup to interact with the picture :

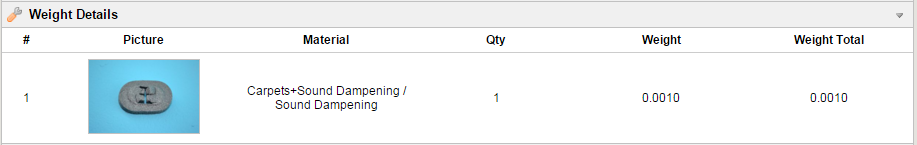

When available, weight details information are displayed here as rows, like fasteners.

Weight details information are : Picture, Name (only if set) Material, Quantity, Single weight and Total weight.

Only parts having the exact same manufacturer reference are listed.

Here user can filter how parts are concidered as similar, by choosing filters and delta threshold :

Available filters are Weight and Measurements (Width, Height and Depth).

Click a filter to enable or disable it. Enabled filters have a white background.

The delta can be selected using a slider, between 0 and 10%.

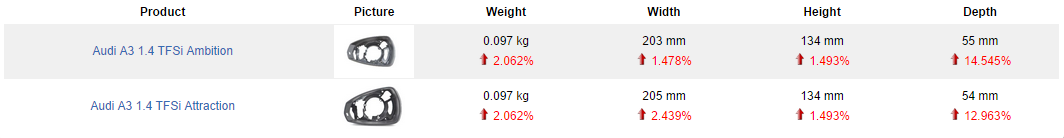

Result are shown below, with the current part percentage difference.

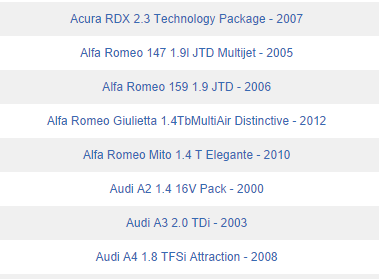

List of products that does not have current part.
