Each hierarchy element having a schematic attached is listed as a row, and schematics are shown below each product.
 System Hierarchy Element
Tree element that contains schematics for product selection.
|
|

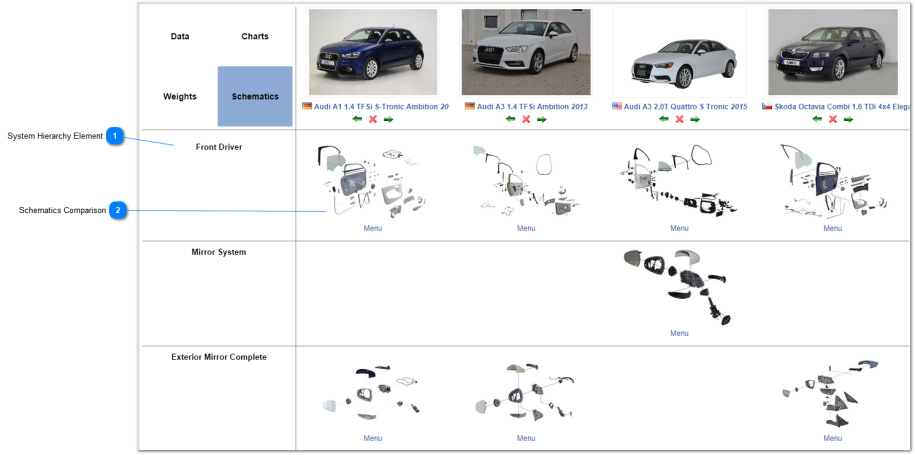

 Schematics Comparison

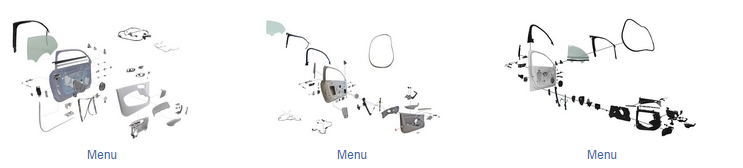

For each tree element, schematics are listed for each product.
Clicking on a schematic will open the Compare Schematics Dialog.
Each schematic has its menu, like in Part Sheet, to be downloaded or added to Basket. |
|
