Hierarchies

A free text search to find parts among the hierarchy.

It searches among part names, ParthCode, and parts weight.

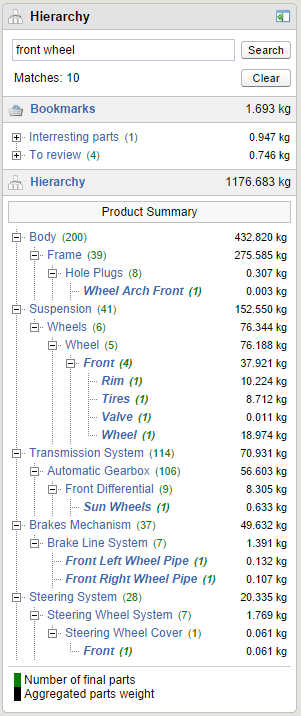

Example with "front wheel" :

The hierarchy is automatically expanded to corresponding parts, which are displayed in bold.

Press the "Clear" button to reset.

When the option is set by the administrator, the hierarchy height is not expanding with its content, but has a fixed height with a scrollbar.

Users can bookmark parts or full systems, which are displayed here as a tree.

Bookmarks are available in product, compare and by parts views.

Click the "Bookmarks" link to open the Customize Bookmarks dialog.



When available, special users can create Public Bookmarks and share them with all company users.

A list of public bookmarks is shown on top of bookmarks tree :

Users can choose whether to show their own bookmarks, or a public bookmarks tree.

Dismantled systems and parts are available as a tree view.

In product mode, only current product parts are displayed.

In By Parts mode, all parts are displayed in the tree.

In Compare mode, only parts from selected products are available in the tree.



Clicking on this "Hierarchy" link will opens a dialog to customize data displayed in the tree.

See Customize Hierarchy Data.

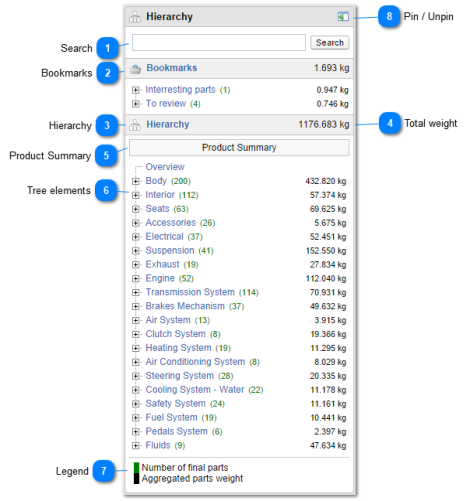

Total weight of corresponding tree, as selected in Hierarchy configuration dialog.

Aggregated parts weight is selected by default.

Shortcut to Product Sheet, acting as hierarchy root.

Elements having a [+] icon are systems, otherwise it's a final part.

Clicking a blue element will show its information on a System Sheet or Part Sheet.

Systems are automatically expanded when clicked.

Clicking the [+] icon will only expand the system, without loading its sheet.

System or part weight is available on the right of the element, depending which data is selected in Hierarchy configuration dialog.



Hierarchy data legend, see Hierarchy configuration dialog.

Pin or unpin the hierarchy box to get more space for system, part, compare sheets.
