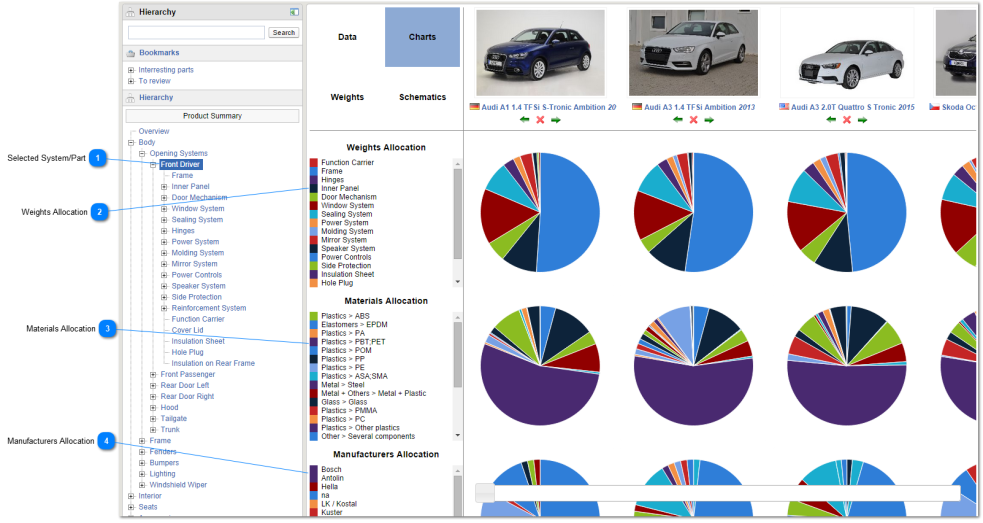

Compare Charts

Compare Charts
Pie charts, as on Product Sheet, are compared in this mode.

1

Selected System/Part

1. Selected System/Part
When selecting a System/Part from the hierarchy, the Compare view is refreshing with selected information.

2

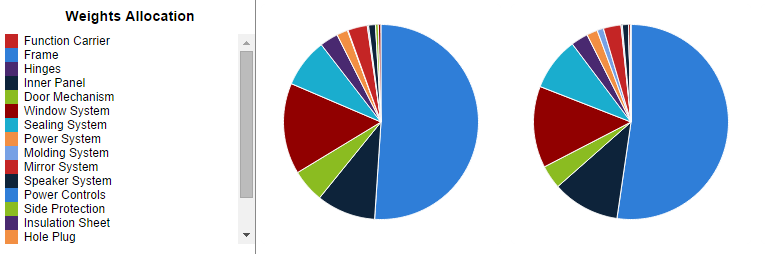

Weights Allocation

2. Weights Allocation

Weight of sub elements repartition.
The legend is common to all weight charts. Right clicking a legend element will remove it from charts and refresh repartitions.
3

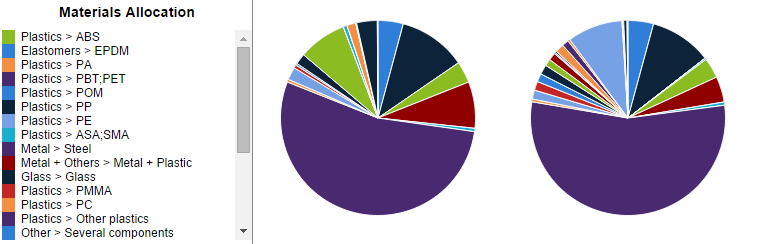

Materials Allocation

3. Materials Allocation

Sub elements material repartitions.
The legend is common to all material charts. Right clicking a legend element will remove it from charts and refresh repartitions.
4

Manufacturers Allocation

4. Manufacturers Allocation
Manufacturers of sub elements repartition.
The legend is common to all manufacturers charts. Right clicking a legend element will remove it from charts and refresh repartitions.
