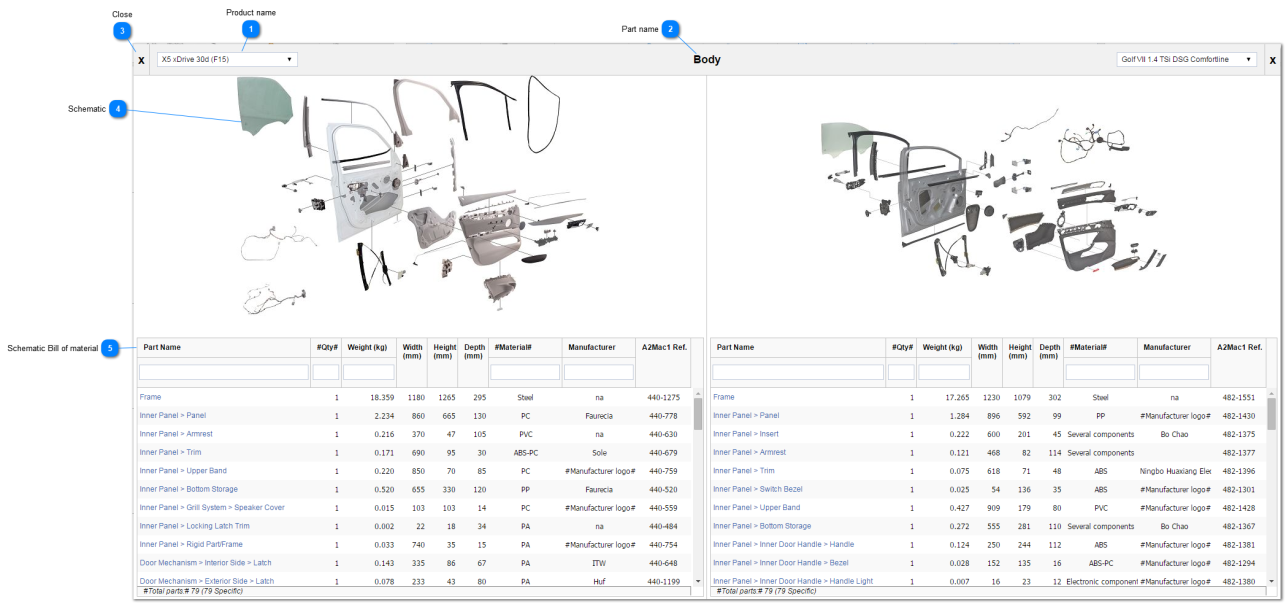

Compare Schematics Dialog
The Compare Schematics Dialog opens when clicking a schematic from the
Compare Schematics page.
![1](images/drex_bullet_1.png) Product name
Select a product from your comparison list.
|
|
![2](images/drex_bullet_2.png) Part name
The current part name where the schematics are compared.
|
|
![3](images/drex_bullet_3.png) Close
Click this button to close the dialog and get back to schematics comparison page.
|
|

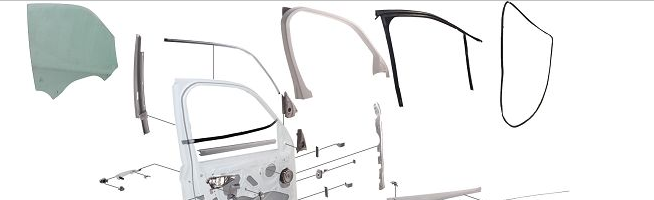

![4](images/drex_bullet_4.png) Schematic
The selected product - part schematic.
Mouse over parts to popup more information and highlight the part in the bill of material below.
|
|

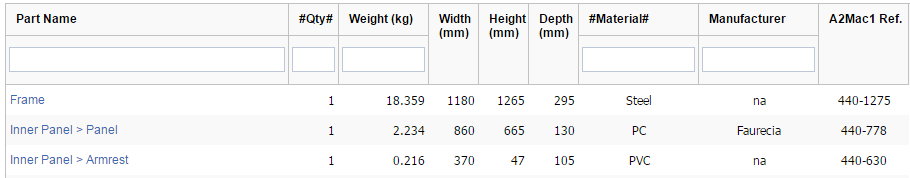

![5](images/drex_bullet_5.png) Schematic Bill of material
A list of parts that are referenced in the schematic above.
Default data is : name, quantity, weight, measurements, material, manufacturer and reference.
|
|
